Full matrix message signs
Manufacturer: Wanco®
WTMMB-SLL
Full-size, full-matrix Wanco Variable Message Signs are the ideal choice when you need to get information to the public. The full matrix allows the greatest flexibility for displaying any type of message — large or small letters, graphics and symbols. Perfect for a wide variety of applications, a multitude of functions and options make these signs extremely versatile.
Features
Setup
- Under 3000 pounds, can be towed by most vehicles
- Standard 2-inch ball coupler tow-hitch
- Hydraulic lift allows one person to easily raise and lower the message board
- Tower rotates 360 degrees for optimal positioning
- Single disk brake holds board in place during operation, while a cradle supports and holds board in travel position
Operation
- Self-contained onboard computer, no laptop required
- Easiest programming in the industry
- Preprogrammed text messages, symbols and graphics
- Quick-reference instructions, silkscreened on control panel, include most commonly performed tasks
- Easily center each line of text
- Internal clock facilitates built-in schedule programming
- Multiple alphanumeric fonts make message clear and legible
- Optical lenses and sunshades increase visibility and performance
- Wide footprint provides stability in high wind, while optional outriggers add even more support
- Multi-level password protection limits access to control software
- Control box can be locked to prevent unauthorized access
- Standard QWERTY keyboard is easily replaced
Power system
- Energy-efficient operation results in long run times
- Solar panels charge batteries automatically without intervention
- Computer shuts down solar-panel charging system when batteries are fully charged, preventing damage
- Unique system allows battery charging with solar panels and commercial power
- Cooling fans protect sign cabinet and battery charger from overheating
- Battery box can be locked to prevent unauthorized access
Maintenance
- Individual character modules can be replaced easily
- Standard 15-inch trailer tires
- Heavy-duty bolt-on steel fenders can be replaced if damaged
- Durable powder-coat finish resists the elements
Standards compliance
- NTCIP compliant
- Meets MUTCD
- AASHTO (NTPEP) tested
Options†
Winch
- Hand-operated heavy-duty winch
Charging system
- Solar panels from 130 to 390 W
Tow hitch
- Heavy-duty lunette ring for 3-inch pintle hook
- Combo-hitch for 2-inch ball and 3-inch pintle hook
Brakes
- Hydraulic surge brakes
- Electric brake
Other options
- Extendible outrigger jack stands for added stability
- IP modem for remote monitoring and message control
- Radar-speed package for monitoring traffic
- Traffic data collector
- Remote-Video Monitoring System
- Remote-access GPS package for locating message sign
Specifications†

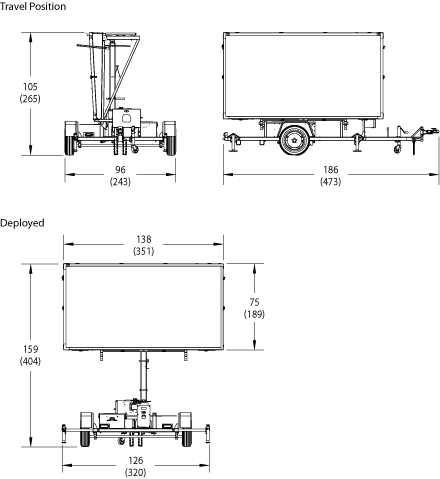

Dimensions — inches (cm)
Weight
Approx. 2640 lbs. (1193 kg)
Construction
| Trailer | MIG-welded, 2 x 3-inch steel tubing |
| Sign cabinet | Aluminum sheet and welded channels |
| Coating | Powder-coated and oven-baked |
| Axle assembly | 3500-lb. capacity 4-inch drop axle 5 on 4.5-inch BC idler hub Double eye leaf springs |
| Tires | ST205/75 D15 |
Display
| Resolution | Four amber LEDs form each pixel |
| Matrix | 48 pixels wide, 27 pixels high |
| Smallest characters | 4 lines, 12 characters |
| Largest characters | 1 line, 6 characters |
| Legibility | Approx. 600 to 3200 ft. (183 to 976 m) |
Power — standard
| Batteries | Four 6 V dc golf cart-type, wired in series and parallel for 12 V dc power supply |
| Battery capacity | 450 Ah total |
| Battery charger | 15 A |
| Solar panels | 130 W |
Power — optional
| Batteries & solar | Six 6 V dc golf cart-type, wired in series and parallel for 12 V dc power supply, 675 Ah total battery capacity 150 W or 170 W solar power |
| Diesel engine | Lombardini 15 LD 350D 7.5 hp (5.5kW) @ 3600 RPM 1.3 qt. (1.2 L) deep oil sump Transparent polyethylene fuel tank, 30-gallon capacity |
†Specifications subject to change without notice.
