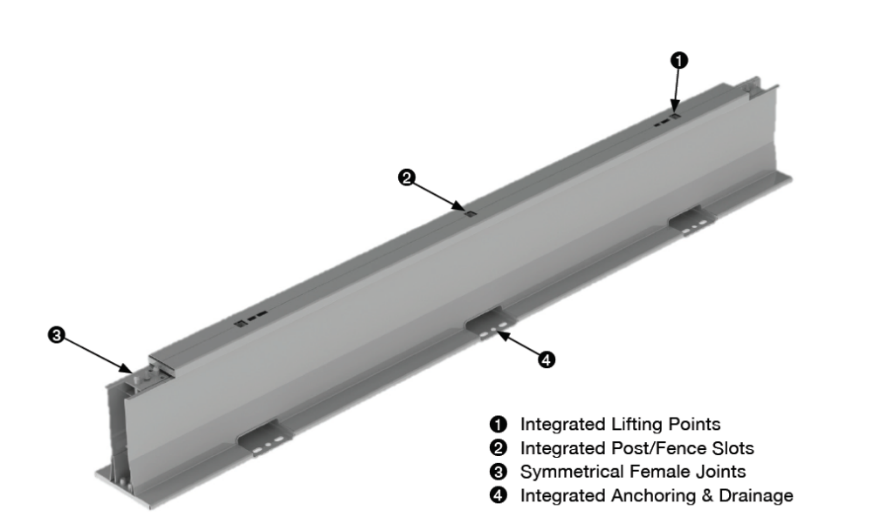

The HighwayGuard Barrier is a portable, longitudinal redirecting steel barrier made of lightweight, galvanized steel segments. It is tested to MASH 16 Test Level 3 and Test Level 4. The HighwayGuard Barrier can be used in work zone applications with other compatible end treatments such as the QuadGuard

Features

• Deployable in either single 20′ segments or dual 40′ segments.
• Standard or Lowest Deflection Systems available for applications where space is limited.
• Designed to help reduce work zone congestion in high traffic areas by creating temporary lane shifts and work zone closures during off-peak or weekend hours.
• Tested to MASH 16 TL-3 and TL-4.

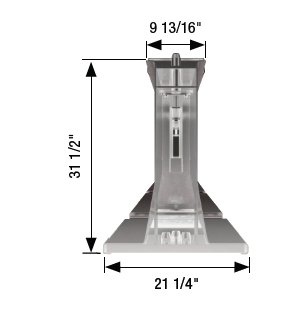

Specifications:
Length: 19.68′ (6.00 m)
Height: 31.50′ (0.80 m)
Width: 21.25″ (0.54 m)
Module Weight: 1217 lbs. (552 kg)
T-Connector Weight: 95 lbs. (43 kg)
System Weight: 62 lb/ft (99 kg/m)
