Remote-Video Monitoring System
WTMMBC, WTLMBC
The Wanco Remote-Video Monitoring System adds video monitoring and remote-access capability to Wanco variable message signs. The system allows remote control of both the camera and the sign. Monitor traffic, change the message displayed on the sign, and control the day/night pan-tilt-zoom camera using your computer’s Web browser.
Details
Details

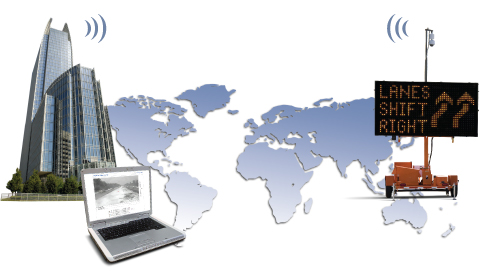

This intelligent transportation system (ITS) links your Wanco message sign and your computer wirelessly via the Internet. You can monitor and control various aspects of the sign’s operation, and monitor traffic while controlling the integrated video camera.
Remote communication with the Remote-Video Monitoring System (RVMS) is possible using a computer, an Internet connection, and the cellular router installed at the message sign. Connect from the comfort of your office, a central command center, or any Internet-enabled location.
At the heart of the RVMS is a ConnectPort™ 3G cellular router. Client software installed on your computer lets you use a standard Internet Explorer® Web browser to “call up” the router. The RVMS video server provides access to the camera, while the router enables access to the sign’s NTCIP-compliant control system. A device server lets you view data from accessories such as radar and GPS.
The RVMS communications components include a cellular router, a signal amplifier to boost cellular signal strength, the message sign’s control software, various server components, and optional accessories. Internal connections at the message sign are prewired and preconfigured at the factory.

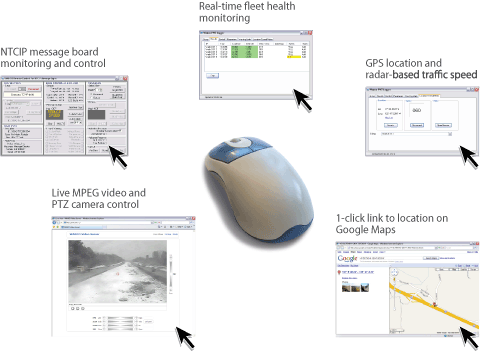

With Wanco client software installed, your computer can access and control the RVMS video camera, message sign, and accessories. Modify the message displayed on the sign; check the unit’s power levels; pan, tilt, and zoom the video camera, access radar and GPS data; and more, all without leaving your chair.
Features
- Monitor work zones, traffic flow and road conditions
- Change the message displayed on the sign
- Remote control
- Real-time access
- Day/night, pan-tilt-zoom camera
- MPEG video
- NTCIP compliant
- Control camera power
- View radar and GPS data
- NEMA equipment enclosure can be locked
- High-speed 3G cellular router
- Video server
- Industrial serial device server
- GPS data logger
- NEMA enclosure includes space for user-installed equipment
Specifications†
| Camera model* | Vicon® Surveyor or Pelco® Spectra IV™ |
| Camera type | Clear-domed day/night, pan-tilt-zoom (PTZ) |
| Optical zoom | 23X standard 35X optional |
| Video | Motion JPEG and MPEG-4 streams |
| Network security | Multiple user-access levels, IP address filtering, HTTPS encryption, IEEE 802.1X authentication |
| Communications | High-speed 3G cellular router, accessible only via TCP/IP Internet access (no local access) |
| Tower | Electric-winch operated, telescoping tower rises to 100 inches (255cm) above top of message board sign |
| Maximum camera height | 20 ft. (6m) |
Camera options available. For more information, please contact the factory.
| Cellular router | High-speed ConnectPort™ 3G cellular router with two serial ports, four Ethernet switch ports, air support, EvDO |
| Cellular signal amplifier | Dual-band, 3 watt, FCC and IC approved |
| Video server | PTZ camera control with multi-level password protection, IP address filtering, HTTPS encryption, IEEE 802.1x authentication |
| Device server | Industrial serial device server, 2-port, serial-to-Ethernet conversion |
| Optional components | Approach-only, K-band radar speed detector, GPS location |
| Local control console | Easy-to-use user interface, NTCIP-compliant software, password-protected access, low-voltage disconnect protection |
| Video | MPEG video and PTZ camera control using Axis Video via Internet browser |
| Message sign | NTCIP-compliant message board control and monitoring using Wanco remote software |
| Status monitoring | Camera power control and monitoring and real-time radar capture using Wanco LVD SCADA |
| Radar | Approach-only radar can be displayed on Portable Work Zone software, providing approximate speed of traffic |
| GPS | GPS data access using Virtual Port or GPS software with TCP/IP |
†Specifications subject to change without notice.
