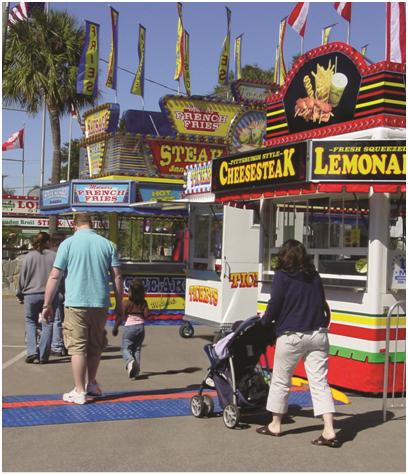

Built-in ADA accessibility ramps to provide a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines. Because the ramps are built-in, there is no need for separate connectors.Interconnects directly to a 5-channel standard ramp cable protector. This modular interlocking design is available in lightweight 18″ sections and it includes a recessed carrying handle on the underside of the protector. Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.

• Protects Cables And Hoses Up To 1.325″ Outside Dia.
• Connect to extend multiple units to anydesired length
• Reinforced Hinged Lid For Easy Cable Placement
• ADA Accessibility Ramps Built In – No Connectors Needed
• All-Weather Polyurethane Construction
• Patented 5-Bar Tread Surface For Maximum Traction
• Interconnects with standard 5 channel connector models

Load Capacity at 70°F 10,000 lb/tire, 21,000 lb/axle

(L) 18” x (W) 50” x (H) 1.875”

Channel width 1.939”

Channel Height: 1.325”

Weight: 21lb
