Manufacturer: Eagle

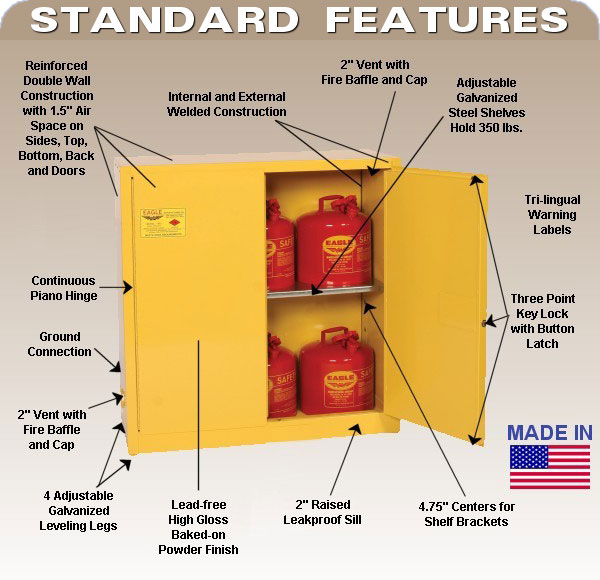

Keep flammable liquids near work areas in Eagle Safety Storage Cabinets. All are constructed of 18-gauge steel. Sides, top, bottom, and doors are double-walled with a 1 1/2" air space between walls. Both vents, with 2" threaded fittings, have fire baffle and cap. Cabinets come in yellow high gloss powder finish with red warning, plus grounding attachment, 3-point key lock, and 2" raised, leakproof door sill. Each shelf is adjustable, supported by 4 brackets, and can support 350 pounds.



All Eagle metal cabinets meet NFPA Code 30 and OSHA requirements.

  • Standard Safety Cabinets
  • Tower Safety Cabinets
  • Stackable Safety Cabinets
  • Under-Counter Safety Cabinets
  • Wall Mount Cabinets
  • Safety Cabinet Accessories
  • Safety Cabinets Features



Specifications

 Model 1905/1906Model 2310/1923Model 3010/1932Model 4510/1947Model 6010/1962Model 9010/1992
Capacity*16 gal.24 gal.30 gal.45 gal.60 gal.90 gal.
Door Style: Self CloseModel 1905Model 2310Model 3010Model 4510Model 6010Model 9010

Door Style: Manual Close **

Model 1906Model 1923Model 1932Model 1947Model 1962Model 1992
Outside Dimensions

23" W

18" D

44" H

23" W

18" D

65" H

43" W

18" D

44" H

43" W

18" D

65" H

31.25" W

31.25" D

65"      H

43" W

34" D

65" H

Inside Dimensions

20" W

15" D

41" H

20" W

15" D

62" H

40" W

15" D

41" H

40" W

15" D

62" H

28.25" W

28.25" D

62"      H

40" W

31" D

62" H

No. of Shelves131222
Shelf Depth14.75"14.75"14.75"14.75"28"30"
Maximum Weight152 lbs208 lbs231 lbs312 lbs332 lbs434 lbs
Compliance

NFPA Code 30

OSHA

NFPA Code 30

OSHA

NFPA Code 30

OSHA

NFPA Code 30

OSHA

NFPA Code 30

OSHA

NFPA Code 30

OSHA

Approvals--FMFMFMFM

*Different storage capacity models are available, please contact us for more information.

**Self Closing Adapter Kits available for Manual Close Door Style Cabinets



Standard Safety Cabinet
