HRX-22HVE2 – Non Vented
HRX-22HVC2 – Vented

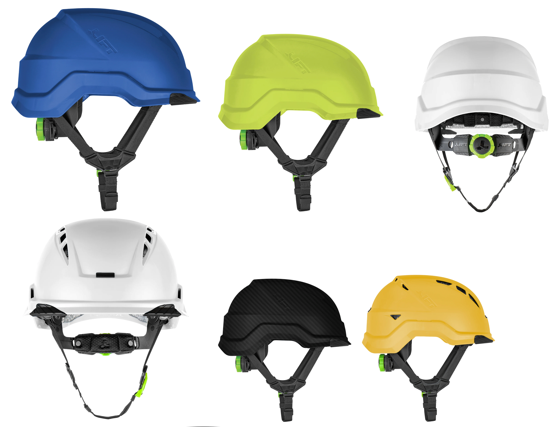

Radix Safety Helmet

Features
The RADIX Vented Safety Helmet is comfortable thanks to its four-point LUX Suspension system, which guarantees the helmet will fit securely on the head. The magnetic quick-lock, adjustable chinstrap makes it ideal for working at height and on the ground. The ventilated outer shell protects against impact hazards. With its potential for integrating an ARCLIGHT headlamp, LIFT hearing protection, and multiple accessories, it is an entirely modular helmet, thus meeting the specific needs of multiple industries.

CERTIFICATIONS: ANSI Z89.1, TYPE 2, CLASS C, Certified ANSI Type 2 standards, protects from side, front, and rear impacts

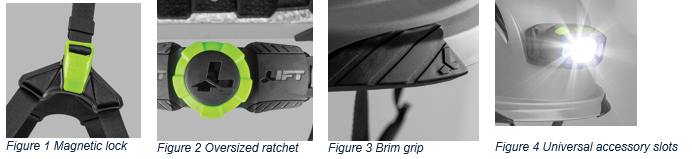

• 12 Ventilation channels provide enhanced air flow for comfort and breathability.
• Brim grip, exclusive design provides a secure feel.
• Oversized ratcheting fitment dial to adjust size is easy to grip and use with gloves on or off.
• Integrated accessory clips with six (6) external built-in attachment points are compatible with a wide range of LIFT Accessories
• Microfiber antimicrobial internal liner assists with moisture-wicking and comfort and is easy to replace and wash.
• Secure four-point connection with easy release magnetic lock
• One size fit most, Standard Head Size 6 ½ - 8 (52-64 cm head circumference)

Hard Hat Weight:
Our Safety Helmet weighs in at an average 495g grams with suspension.

Application of Use:
Working-at-heights, Confined Space, Heavy Industrial, Rescue, Arborist and General Construction.

Colors:
White, Red, Yellow, Lime Green, Blue, Gray, and Carbon Fiber.

Lifespan
3 - 5 Year Average Lifespan: Hard hat lifespan may vary depending on the conditions of each work site. Hard hats subjected to more wear and tear or used outdoors in direct sunlight may need to be replaced more frequently. Daily inspections are the best way to determine when to replace a hard hat shell, suspension, or the entire unit. Suggested replacement is based on service life (Based on when the hard hat was placed into service, not the manufacture date).

As a general guideline we recommend replacing hard hats every 3-5 years regardless of outside appearance, but this can vary due to use and job site conditions.

Optional Accessories:
• Visor clear & mirror
• Sunshade
• Mounted earmuffs
• Arclite headlamp
• Replacement padding
• Replacement suspension

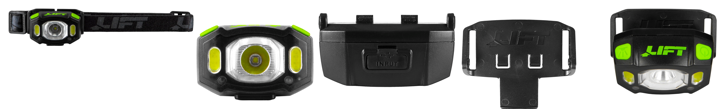

Arclite Universal Headlamp
LAC-21BLK
FEATURES:
• 340 lumens in Maximum illumination mode, the Arclite Headlamp can illuminate objects up to 80 meters away.
• Primary mode features six light options: Maximum, High, Medium, Low, Steady Red and Flashing Red.
• Secondary sensor mode allows the user to turn the light on and off in each mode with the wave of a hand.
• The Arclite Headlamp offers a soft, elastic strap for wearing on your head or generic hardhat mounting and a detachable mount for our RADIX safety helmet.
• For owners of LIFT Safety accessory mount ready hard hats, a clip mount is included.
• Fits BRIGGS, DAX, RADIX and iDAX hard hats.

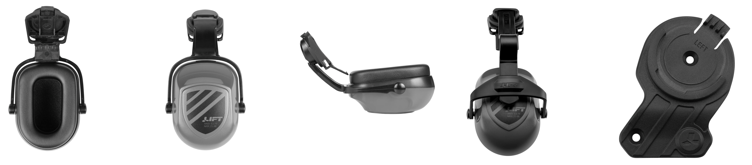

Mounted Earmuffs HEP25-22GY
NOISE CONTROL HEARING PROTECTION
Our noise control hearing protection passively blocks noise by relying on the insulating materials of the ear cups to dampen sound. The dielectric construction makes them safe for all environments including electrical applications. Comfortable cups and low pressure make them comfortable for all-day wear.

• 25DB Passive Noise Reduction Rating.
• Spring design offers low pressure and a high level of comfort.
• Three distinct wearing positions for ease of use.
• Excellent grip makes it easy to adjust the cups, even when wearing gloves.
• Provides maximum space for the ears inside the cup.
• Soft ear cup material allows extended wear without discomfort.
• Easy ear cup height adjustment.
• Retain the Class E dielectric rating on the RADIX Non-Vented and BRIGGS Non-Vented.

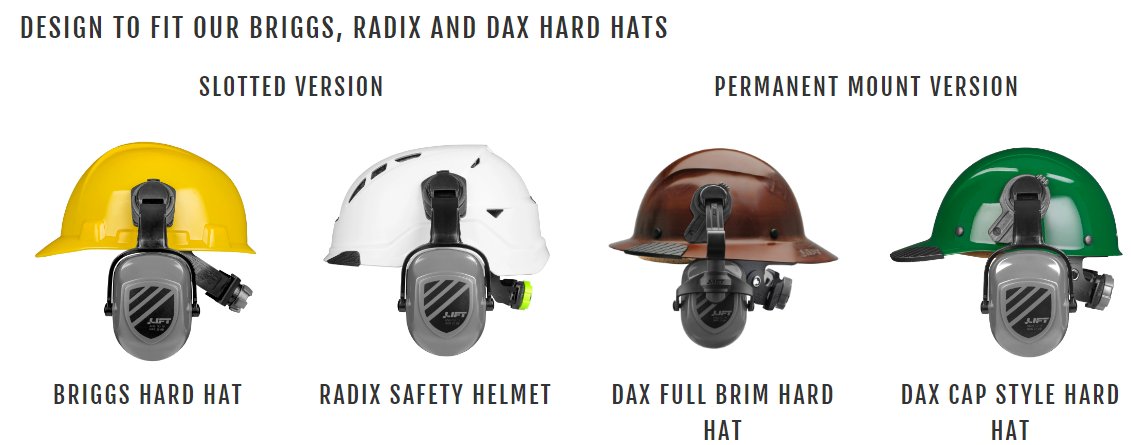

• Universal slot design, our hearing protection will fit any hard hat or safety helmet with slotted attachment points.
• Markets: Construction, General Industry, Oil & Gas, Utilities.

DAX CAP STYLE & FULL BRIM MOUNT
• Easy to install permanent mount for the DAX hard hat line, provides built in guide for exact location mounting on your hard hat.
• Designed to fit DAX Cap Style and DAX Full Brim Hard hats.
• Download the Mounting Instructions below.

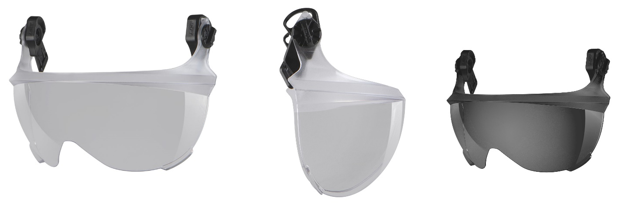

Radix Visor
HRXV-22C
• Injected polycarbonate construction provides optical clarity beyond most flex visors.
• Provides superior protection from debris, chemical splash, UV radiation, and other hazards.
• Visor thickness makes it less susceptible to heat warping and improves impact characteristics, passes ANSI Z87+.
• Available in clear, smoke, and mirrored for additional optical protection in any weather condition, twist-lock assembly system allows easy swapping of multiple visors.
• Designed for use exclusively with LIFT Safety RADIX Safety Helmet.

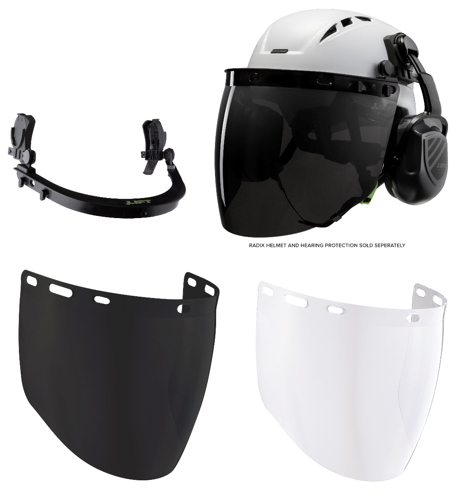

Radix Face Shield
HRXA-23M
This face shield integrates seamlessly with LIFT Safety’s RADIX Helmets, enhancing eye and face protection. It meets ANSI/ISEA Z87.1-2020 and CSA Z94.3 standards for impact and optical performance. The adapter snaps easily into designated helmet slots for quick installation. Featuring a durable 2mm thick polycarbonate lens, it offers robust protection against airborne particles and debris. The shield adjusts vertically, and the adapter tilts, ensuring a personalized fit and clear visibility. It also blocks 99.9% of harmful UV rays, protecting eyes from the sun. Compatible with Noise Control Earmuffs, safety glasses, and headlamps, the shield is available in smoke and clear options, with replaceable shields sold separately. This setup is ideal for comprehensive safety in demanding environments.

FEATURES
•Optimized for LIFT Safety Helmets: This face shield seamlessly integrates with RADIX Safety Helmets, enhancing both eye and face protection.
•Impact Protection Certified: Complies with ANSI/ISEA Z87.1-2020 (Marks: Z87.1+) and CSA Z94.3 standards for impact and optical performance.
•Simple Setup: The face shield adapter easily clicks into the designated accessory slots on safety helmets for quick installation.
•Robust Construction: Features a durable 2mm thick polycarbonate lens for extended use.
•Comprehensive Face Coverage: Offers protection from airborne particles and debris.
•Flexible Adjustment: The shield adjusts vertically (fully down, halfway, or fully up) and the adapter tilts to provide a personalized fit and optimal visibility.
•UV Ray Defense: The lens blocks 99.9% of UVA, UVB, and UVC rays, ensuring eye safety under the sun.
•Designed for Accessory Integration: Includes a slot for Noise Control Earmuffs, allowing them to be used concurrently with the face shield.
•Variety of Tints Available: Offered in both smoke and clear options. Replaceable Shields: Additional shields are available for purchase separately.
•Applications of Use: General construction, manufacturing, aborist tree cutters, mining, and industrial.

This face shield integrates seamlessly with LIFT Safety’s RADIX Helmets, enhancing eye and face protection. It meets ANSI/ISEA Z87.1-2020 and CSA Z94.3 standards for impact and optical performance. The adapter snaps easily into designated helmet slots for quick installation. Featuring a durable 2mm thick polycarbonate lens, it offers robust protection against airborne particles and debris. The shield adjusts vertically, and the adapter tilts, ensuring a personalized fit and clear visibility. It also blocks 99.9% of harmful UV rays, protecting eyes from the sun. Compatible with Noise Control Earmuffs, safety glasses, and headlamps, the shield is available in smoke and clear options, with replaceable shields sold separately. This setup is ideal for comprehensive safety in demanding environments.

FEATURES

•Optimized for LIFT Safety Helmets: This face shield seamlessly integrates with RADIX Safety Helmets, enhancing both eye and face protection.
•Impact Protection Certified:Complies with ANSI/ISEA Z87.1-2020 (Marks: Z87.1+) and CSA Z94.3 standards for impact and optical performance.
•Simple Setup: The face shield adapter easily clicks into the designated accessory slots on safety helmets for quick installation.
•Robust Construction: Features a durable 2mm thick polycarbonate lens for extended use.
•Comprehensive Face Coverage: Offers protection from airborne particles and debris.
•Flexible Adjustment: The shield adjusts vertically (fully down, halfway, or fully up) and the adapter tilts to provide a personalized fit and optimal visibility.
•UV Ray Defense: The lens blocks 99.9% of UVA, UVB, and UVC rays, ensuring eye safety under the sun.
•Designed for Accessory Integration: Includes a slot for Noise Control Earmuffs, allowing them to be used concurrently with the face shield.
•Variety of Tints Available: Offered in both smoke and clear options. Replaceable Shields: Additional shields are available for purchase separately.
•Applications of Use: General construction, manufacturing, aborist tree cutters, mining, and industrial.

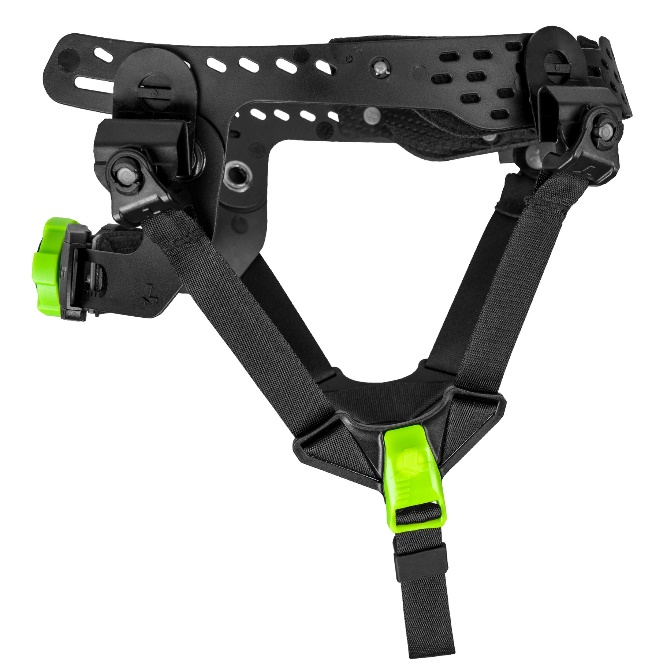

Radix replacement suspension
HRX-22RKB

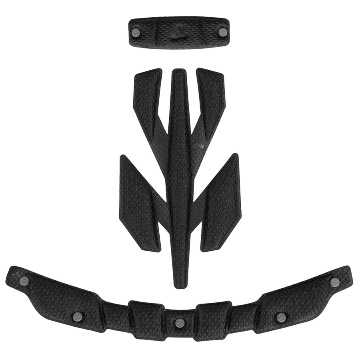

Radix Replacement pad kit
HRX-22RK
• Replace internal antimicrobial liners in your RADIX vented or non-vented safety helmet.
• Kit includes rear, crown, and front pads with snaps.
