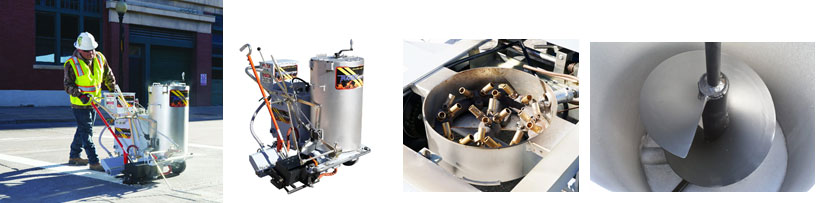

360QMII Thermoplastic Applicator

Introducing our latest product, the ALL-NEW 360QMII. The 360QMII is the Quick Melt version of the 360MII applicator with greatly reduced melt times yet maintains the same great portability. The 360QMII is best used by customers looking for increased production without the additional investment of an external premelter. We have identified this growing market segment requiring enhanced production with a more affordable upfront investment. The 360QMII can double and even triple production rates. Get 2-3 times the production gains with only a moderate increase in price. The 360QMII represents a great value and investment.
The 360QMII also fills an efficiency need with the largest thermoplastic contractors. For those countless smaller jobs that require melting and applying 1-30 bags per day, the 360QMII becomes a very economical solution that handles these quickly while not tying up the more expensive premelter trucks or trailers. With the 360QMII, smaller crews handle these jobs to lower jobsite costs. This allows the larger thermoplastic equipment to handle the higher volume jobs they were designed for.
All the great features, comfort levels, and incredible maneuverability of the 360MII is retained on every 360QMII. So, as your thermoplastic business grows, the 360QMII seamlessly transitions from the melter/applicator to working in tandem with a higher output external premelter to now productively apply hundreds of bags per day.

Unique Features
• 14″ Auger System. This auger is 40% larger and really compliments the 360QMII’s new burner system. More intense heat requires more effective agitation and this auger delivers. It ensures uniform material temperatures throughout the material column. This further improves line quality and consistency
• New “system matched” HO burner system. The 360QMII’s burner delivers over twice the BTU’s and distributes it over a greater area for more even heat transfer and quicker melt times.
• Streamline, proven design chassis: the 360QMII is based on the 360MII therefore retains all the advantageous features and benefits
• Industry’s most versatile tank offering: Choose 360 lb. tanks or 265 lb. tanks based on your needs
• Industry exclusive direct drive bead dispense: Beads are mechanically and positively engaged so bead reflectance numbers are more easily met.

Melts and applies up to 30 bags per day
• Better line quality in every way due to more accurately held temperatures
• Surprisingly fast melt times of 2-3 times faster
• Less standing around…waiting
• Reduces cost per foot of applied

Options
Bead system:
1. Individual 4”
2. Individual 6”
3. Double drop 12”
4. Standard 12”
5. 16” instead standard of 12”
Extrusion Die Sizes
1. 4” die
2. 6” die
3. 8” die
4. 12” die
5. 16” die
6. 18” die
7. Dual 4” dies
8. Dual 6” dies
9. Self-propel hitch kit
