Manufacturer: Valtir

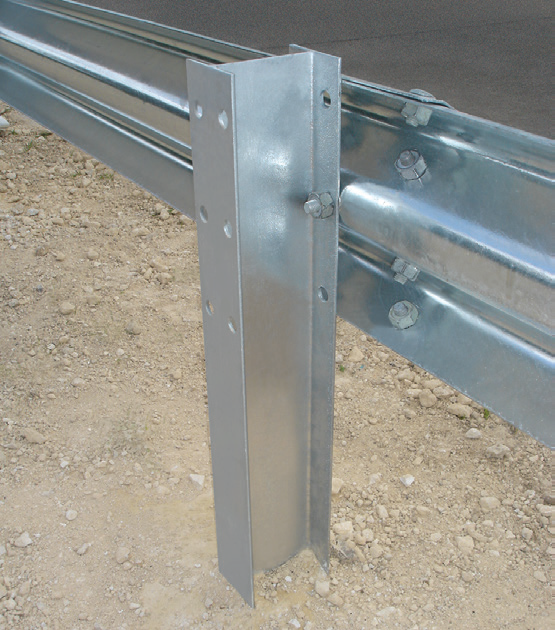

The TGS™ is a 31” high W-beam, no blockout system. The Standard Strong Line Posts are spaced at 6’ 3″ with splices either on the posts or between the posts. The TGS™ is tested to both NCHRP Report 350 Test Level 3 and MASH Test Level 3.With the 31” system height, the W-beam attaches directly to the post, and does not use offset blocks which helps reduce site grading.

Features

  • Standard strong posts.
  • Does not use offset blocks which helps reduce site grading.
  • Countersunk head bolts.
  • Splices either at post or at mid-span.

Specifications

  • Standard W-Beam Guardrail W6 x 8.5 x 6’ 0″ (W150 x 13.0 x 1,830 mm)
  • W-Beam Guardrail Height: 31″ (787 mm)
  • Post spacing: 6’ 3″ (1,905 mm)
  • Countersunk Head Bolts: 5/8″ x 1 ¾” (16 mm x 45 mm)

TGS-Guardrail
