WTSV Arrow Board

Features

• Display panel rotates freely to face traffic, 360 degrees
• Provides a clear view of road workers
• 15-light and 25-light models
• Maintenance-free batteries
• Meets MUTCD

Operation

• High-output amber LEDs
• Selection of arrow and other display patterns
• Easy to operate and maintain
• Heavy-duty hand-winch with safety brake allows one person to raise display panel
• Display panel rotates freely for positioning without moving trailer
• Controller, batteries and all wiring mounted to display panel frame
• Weather-resistant control box cover has lockable slam-latch
• Control box outputs have short-circuit protection, helping prevent blown transistors
• Arrow display has automatic dimming
• Stabilizer legs raise tires off the ground to provide stability in high wind

Power System

• System disconnects solar charging system from batteries when they are fully charged, preventing over-charging and damage to batteries
• Unique system allows battery charging with solar panel or commercial power
• Power system includes reverse polarity protection and low-voltage disconnect circuit
• Controller has resettable fuses
• Solar charging system features solid state voltage regulator with charge indicator

Maintenance

• Maintenance-free batteries
• Durable powder-coat finish resists the elements
• Lamps and visors are easily replaced
• Standard trailer tires
• Heavy-duty bolt-on fenders can be replaced if damaged

Environmental

• Consumes 80% less power than traditional solar arrow boards
• Smaller batteries have 80% less lead content
• Sealed batteries will not leak or spill
• Decreased charging time saves energy and downtime
• Manufacturing process emits near-zero VOCs
• Nearly every component can be recycled

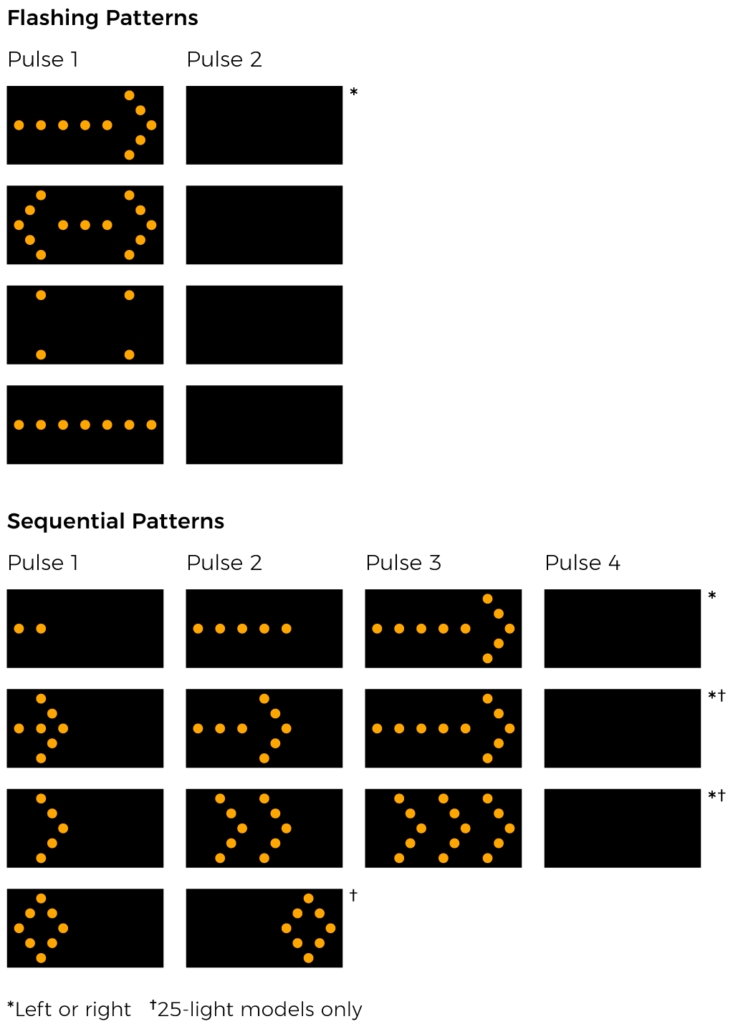

Display Patterns

Options

DISPLAY

• 15-light, 5 patterns
• 15-light, 7 patterns
• 25-light, 12 patterns


POWER

• Additional solar
• Additional batteries


TOW HITCH

• Combo-hitch for 2-inch ball and pintle hook
• Standard lunette ring for 2 1/2-inch pintle hook
• Heavy-duty lunette ring for 3-inch pintle hook


OTHER OPTIONS

• Manual dimming
• 2-amp battery charger
• Auto-lock stabilizer jacks
• Wanco Fleet Manager
